SD Near Bit Stabilizer

SD near bit stabilizer

Application

The near bit stabilizer is used to stabilize and centralize BHA during wellbore drilling.

Design

Stabilizer is a cylinder with three right-hand spiral blades, hard-faced with chrome-nickel alloy. The stabilizer is used both for rotary, and turbine drilling. Rotation of the stabilizer near the bit creates additional support to the BHA and diminishes vibrations.

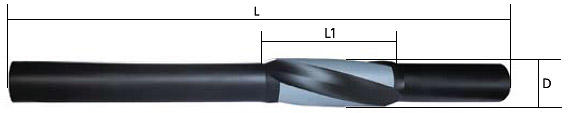

Images and Dimensions

Technical data

To cart	Code	Total length, ft	L1, ft	D, in	Top connection, compatible with API	Weight, lb
	SD-149.2	4.75	1.08	5-7/8	3-1/2 Reg	232.0
	SD-215	4.76	1.08	8-1/2	5-1/2 FH	441.0

You can specify the size of an item on the checkout page.
