SK String Stabilizer

Application

The string stabilizer is used to stabilize and centralize BHA and drill string during wellbore drilling.

Design

The stabilizer is a cylinder with three right-hand spiral blades, hard-faced with chrome-nickel alloy.
No temperature limitation.
No depth limitation.

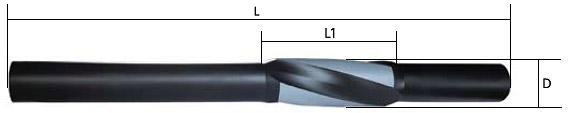

Images and Dimensions

Technical data

To cart	Code	Total length, ft	L1, ft	D, in	Top connection, compatible with API	Weight, lb
	SK-82	2.95	0.82	3-1/4	NC 16	34.8
	SK-92	3.44	0.82	3-5/8	2-3/8 Reg	77.2
	SK-95	3.44	0.82	3-3/4	2-3/8 Reg	87.1
	SK-104	3.94	0.84	4-1/8	2-3/8Reg	92.6
	SK-120	3.61	0.98	4-3/4	2-7/8 Reg	119.0
	SK-128	3.77	1.15	5-1/16	2-7/8 Reg	131.0
	SK-146	4.92	1.31	5-3/4	3-1/2 Reg	203.0
	SK-149	5.41	1.25	5-7/8	3-1/2 IF	265.0
	SK-155	5.41	1.64	6-1/8	3-1/2 Reg	229.0

You can specify the size of an item on the checkout page.
