OR Roller

Show video

Application

OR roller restores buckled, collapsed casing to its nominal diameter and roundness during intervention operations in a wellbore.

Design

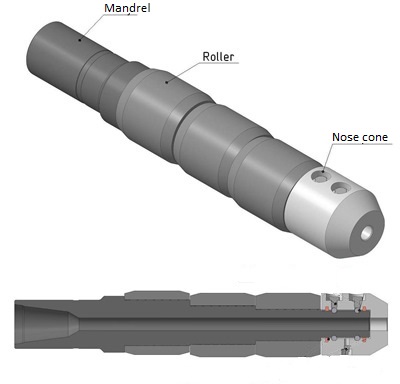

The roller consists of a mandrel, regular rollers (upper and lower), a set of middle rollers and a nose cone. The mandrel has box thread connection at the upper end. The mandrel has eccentric 120° V-grooves, on which rotating rollers of relevant diameter are installed.
The rollers cold-roll the internal surface of the collapsed casing during rotation, forming casing ID correlated to roller`s OD.
The roller can be manufactured in left-hand configuration.

Images and Dimensions

Technical data

To cart	Code	Nominal D of restored casing string, in	Nominal D of swage, in	Watercourse OD, in	Axial load, lbf	Total length, ft	Compatible API connection	Max torque, lbf.ft	Weight, lb
	OR-114	4-1/2	3.76 - 4.02	1/2	56 200	1.97	2-3/8 IF	7 376	53.1
	OR-127	5.0	4.09 - 4.49	5/8	62 950	1.97	2-7/8 Reg	11 060	67.2
	OR-140	5-1/2	4.6 - 5.16	11/16	71 490	1.99	2-7/8 Reg	11 060	117.0
	OR-168	5-3/4	5.58 - 5.97	15/16	78 680	2.66	3-1/2 Reg	11 060	177.7
	OR-178	7.0	5.83 - 6.09	1.0	85 430	3.04	3-1/2 Reg	11 060	208.8
	OR-245	9-5/8	8.37 - 8.72	4-3/8	94 420	3.79	3-1/2 IF	11 060	546.4

You can specify the size of an item on the checkout page.
