SM Scraper

Show video

Application

SM scraper removes sludge, cement, rust, paraffin, tar, asfaltene and scale precipitation from the inside walls of the casing.

Design

The scrapping operation begins with rotation, progression and mud circulation. The scraper is run in on drill pipes and rotated with rotorary table or mud motor at a low speed.
It is available in left and right-hand thread configuration.

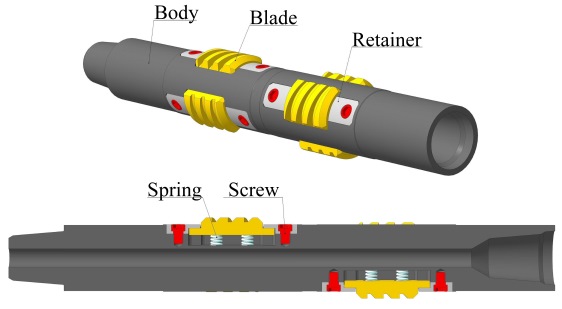

Images and Dimensions

Technical data

To cart	Code	Body OD, in	Casing diameter D, in	Max D of dies projection, in	Total length, ft	Compatible API connection	Weight, lb
	SM-60	1-13/16	2-3/8	2-7/16	1.96	NC 10	33.07
	SM-73	2-7/8	2-7/8	2-7/16	2.32	NC 13	55.12
	SM-89	2-7/8	3-1/2	3-3/16	2.32	NC 16	61.73
	SM-102	3-7/8	4.0	3-7/8	2.64	NC 16	72.75
	SM-114	3-7/2	4-1/2 - 5.0	4-3/4	2.64	NC 23	88.18
	SM-140	4-7/16	5-1/2 - 5-3/4	5-7/16	2.88	2-7/8 Reg	105.8
	SM-146	4-7/16	5-3/4	5-7/16	2.88	2-7/8 Reg	105.8
	SM-168	5-3/8	6-5/8 - 7.0	5-7/16	3.31	2-7/8 IF	167.6
	SM-178	5-3/8	7.0	6-5/8	3.31	3-1/2 Reg	295.4
	SM-245	8-7/16	9-5/8 - 10-3/4	9-7/16	3.97	4-1/2 IF	405.7
	SM-340	10-7/8	13-3/8	13.0	3.97	6-5/8 Reg	560.0

You can specify the size of an item on the checkout page.
