SShch Scraper-brush

Show video

Application

SShch scraper-brush scours internal walls of the casing and removes mud, rust, asfaltene, tar and paraffin build-ups.

Design

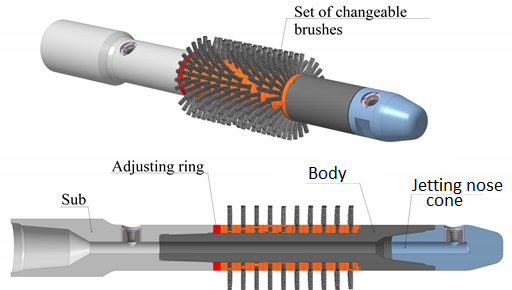

SShch scraper-brush consists of a body with a watercourse, a jet bushing, a sub and a set of interchangeable brushes.
Run on drillpipes, jet is activated with sufficient mud pressure and brush is rotated with high-speed mud motor, rotary table and top drive assembly. By jointly brushing and jetting, the scraper-brush provides safe and effective cleaning of casing ID after perforation.
It is available with right and left-hand thread.

Images and Dimensions

Technical data

To cart	Code	Casing diameter D, in	Length, ft	D1, in	D2, in	Rotation rate, rpm	Compatible API connection	Flow rate, gps	Weight, lb
	SSCH-140	5-1/2	3.54	4-3/4	3-3/4	120-240	2-7/8 Reg	158.5 - 237.8	88.18
	SSCH-146	5-3/4	3.26	5-5/16	3-3/4	120-240	2-7/8 Reg	158.5 - 237.8	81.57
	SSCH-168	6-5/8	3.29	5-5/16	3-3/4	120-240	NC 31	158.5 - 237.8	101.4
	SSCH-178	7.0	3.49	6-7/16	3-3/4	120-240	NC 31	158.5 - 237.8	125.7
	SSCH-245	9-5/8	3.47	9-1/16	6-3/8	120-240	NC 38	158.5 - 237.8	313.1

You can specify the size of an item on the checkout page.
