FKK Taper Mill

Show video

Application

FKK taper mill angle is used to scour rathole to ensuring that subsequent assemblies can pass through smoothly.

It can be used:

Separately with circulation through central and lateral ports;
In conjunction with watermelon mill and circulation through taper mill ports.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru.

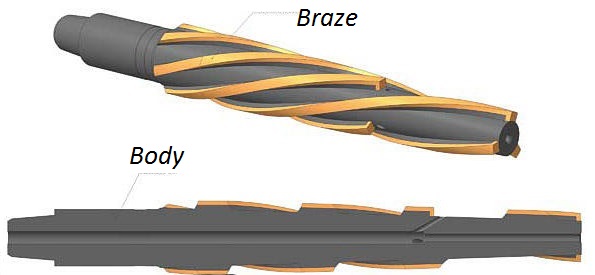

Images and Dimensions

Technical data

To cart	Code	Casing OD, in	Total length, ft	L1, ft	D, in	Top connection, compatible with API	Weight, lb
	FKK-80	4.0	3.54	1.62	3.15	NC 16	79.4
	FKK-95	4-1/2	3.54	1.62	3.74	NC 16	88.2
	FKK-110	5.0	3.54	2.63	4.33	2-3/8Reg	92.6
	FKK-121	5-1/2	3.54	2.63	4.76	2-7/8 Reg	101.0
	FKK-125	5-3/4	3.54	2.63	4.92	2-7/8Reg	99.2
	FKK-144	6-7/8	3.54	2.63	5.67	2-7/8IF	143.0
	FKK-156	7.0	3.54	2.63	6.14	2-7/8 IF	150.0
	FKK-170	7-7/8	3.94	2.63	6.69	3-1/2 IF	198.0
	FKK-195	8-7/8	3.94	2.63	7.68	4-1/2 Reg	271.0
	FKK-215	9-7/8	3.94	2.63	8.46	4-1/2 Reg	342.0
	FKK-240	10-3/4	3.94	2.63	9.45	4-1/2 IF	443.0
	FKK-255	11-3/4	3.94	2.63	10.0	4-1/2 IF	470.0
	FKK-275	12-3/4	3.94	2.63	10.8	5-1/2 FH	507.0

You can specify the size of an item on the checkout page.
