UPGT Coiled Tubing Clamp

Full specifications

Application

Coiled tubing clamp is used to secure, suspend and retrieve damaged coiled tubing at surface.

Design

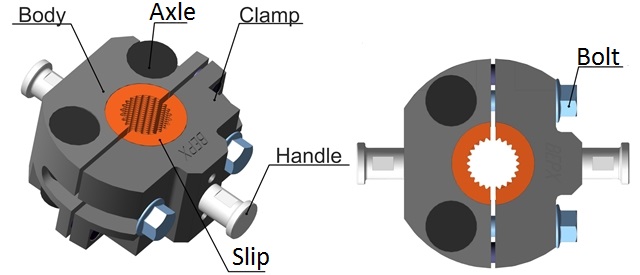

The tool is an assembly of a body and a bolt-fed clamp, aligned with rods, and replaceable slips attached with screws. It also has handles for easy transportation. The tool can be supplied with interchangeable attachments for specific tubing sizes.

Images and Dimensions

Technical data

To cart	Code	Size of fished coiled tubing	Diameter along body, in	Diameter along handles, in	Height, ft	Max load capacity, lbf	Weight, lb
	UPGT	19.1; 25.4; 33.4; 38.1; 44.45	7.87	10.24	0.33	35 969	39.69

You can specify the size of an item on the checkout page.
