PS-TP Impression Block

Application

PS-TP flat-bottom impression block is used to determine size and position of the top of the fish during remediation / intervention in a well.

Design

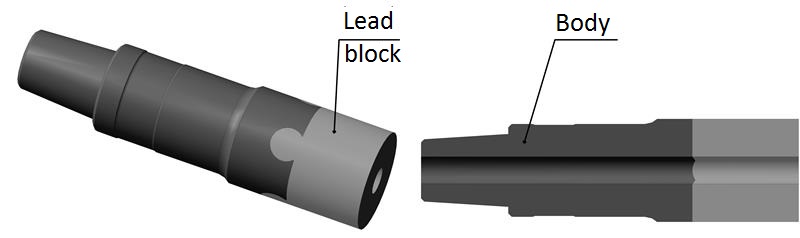

The block consists of a body with thread and lead matrix. There is a watercourse for circulation.
Due to the lead plasticity the fish leaves an impression on the block. Rigid connection of the lead matrix to the body precludes the block from being left in hole.

Images and Dimensions

Technical data

To cart	Code	OD, in	Watercourse size, in	Total length, ft	Lead thickness, in	Connecting thread	Weight, lb
	PS-55TP	2.17	0.63	0.72	1.38	AMMT	8.16
	PS-60TP	2.36	0.63	0.72	1.57	AMMT	8.82
	PS-65TP	2.56	0.63	0.72	1.57	AMMT	9.04
	PS-70TP	2.76	0.63	0.72	1.77	AMMT	9.04
	PS-75TP	2.95	0.63	0.75	1.77	AMMT	9.26
	PS-80TP	3.15	0.63	0.75	1.77	AMMT	9.7
	PS-85TP	3.35	0.63	0.77	1.77	AMMT	10.36

You can specify the size of an item on the checkout page.
