PS-T Impression Block

Show video

Application

PS-T lead impression block defines size, shape and relative position of obstruction or fish in tubing string during remediation.

Design

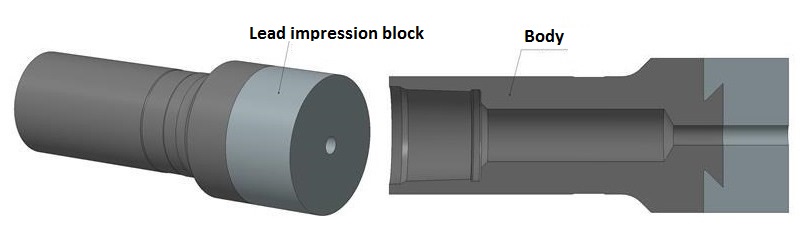

The impression block consists of a body with thread connection and lead impression block. It has a watercouse for circulation.
Due to lead plasticity, it is possible to obtain impression of a foreign object in a borehole.
Durable connection between the body and the impression block precludes impression block from being left in hole.

Images and Dimensions

Technical data

To cart	Code	OD, in	Watercourse OD, in	Length, ft	Lead thickness, in	Connection, API	Weight, lb
	PS-41T	0.14	-	0.57	1-3/16	NC 10	0.9
	PS-45T	1-3/4	-	0.57	1-3/16	NC 12	1.1
	PS-54T	2-1/8	3/16	0.65	1-3/8	NC 13	5.6
	PS-57T	2-1/4	3/16	0.65	1-3/8	NC 13	6.3
	PS-70T	2-3/4	3/16	0.67	1-3/8	NC 13	8.4
	PS-89T	3-1/2	3/16	0.79	1-9/16	2-3/8 Reg	19.8
	PS-98T	3-7/8	5/16	0.9	2-9/16	2-7/8 Reg	32.4
	PS-105T	4-1/8	3/8	0.9	2-9/16	2-7/8 Reg	35.3
	PS-121T	4-3/4	5/8	0.92	2-9/16	2-7/8 Reg	58.2
	PS-140T	5-1/2	5/8	0.95	2-9/16	3-1/2 Reg	72.8
	PS-203T	8.0	1-1/8	1.76	2-9/16	4-1/2 Reg	178.6
	PS-216T	8-1/2	1-1/8	1.76	2-9/16	4-1/2 Reg	191.6
	PS-292T	11-1/2	1-3/8	1.89	2-9/16	NC 50	327.2
	PS-299T	11-3/9	1-3/8	1.89	2-9/16	NC 50	337.4
	PS-355T	14.0	1-4/5	1.97	3-15/16	6-5/8 Reg	579.9
	PS-381T	15.0	3.0	2.64	3-15/16	6-5/8 Reg	789.4
	PS-431T	17.0	3-1/7	2.79	3-15/16	NC 31	1111.3
	PS-609T	24.0	3-1/7	3.08	3-15/16	6-5/8FH	2022.0

You can specify the size of an item on the checkout page.
