Application

TLV releasable spear is used to internally engage and retrieve tubular fish from a wellbore.

Design

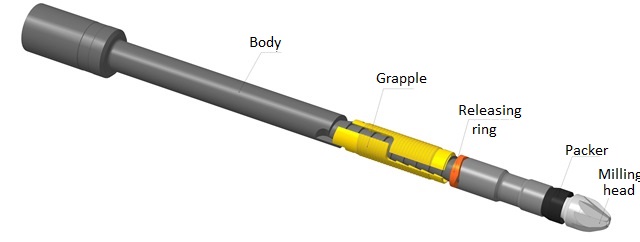

The releasable spear consists of a body, a basket grapple, a milling head, a releasing ring and a packer.

Benefits:

The innovative design of the basket grapple enables higher break-out torque without any risk of its damage or failure.
Milling head removes small foreign objects (cable bands, metal pieces etc), pushes cable pieces inside the fish and washes sediments out. All that facilitates trip of the spear into the fish.
Packer seals off space between the spear and the fish, allowing for circulation below fish neck during reciprocation or lubricant injection to the stuck point.
Extended length of the spear allows for fish retrieval even with damaged neck.

Spears is available in left/right hand configuration.

Consumables, such as basket grapple and packers, are procured separetely and of specific size. It is recommended to order various sizes to enhance efficiency of the tool.

To cart	Code	OD, in	Total length, ft	Grapple, in	Watercourse D, in	Connection, API	Load capacity, lbf
	TLV-34	1.28	2.13	1-7/16 - 1-3/4	3/8 in upper joint	NC 23	56 200
	TLV-48	1.43	3.45	1-7/16 - 2,0	3/8 in upper joint	NC 10	44 960
	TLV-60	1.87	3.94	2-15/16 - 2-7/16	3/8	NC 13	76 440
	TLV-73	2.32	3.95	2-3/8 - 3-1/16	1/2	NC 23	146 100
	TLV-89	2.8	4.27	2-7/8 - 3-15/16	1/2	NC 23	224 800
	TLV-102	3.31	4.58	3-3/8 - 4,0	11/16	NC 26	292 300
	TLV-114	3.74	4.76	3-7/8 - 4-3/8	13/16	2-7/8 Reg	359 700
	TLV-127	4.08	4.76	4-3/16 - 6-1/16	7/8	2-7/8 Reg	449 600
	TLV-146	4.72	4.77	4-7/8 - 5-15/16	7/8	3-1/2 Reg	562 000
	TLV-168	5.1	4.84	5-1/4 - 6-1/8	1,0	3-1/2 Reg	651 900
	TLV-178	5.82	4.84	6-1/8 - 7-15/16	1-3/16	4-1/2 Reg	651 900
	TLV-219	7.01	5.46	7-11/16 - 11,0	2-3/4	5-1/2 FH	1 012 000
	TLV-245	7.87	5.96	8-5/8 - 19,0	2-3/4	5-1/2 FH	1 461 000
	TLV-426	11.42	4.49	16-1/4 - 19,0	4,0	5-1/2 FH	1 911 000
