TLVPM Releasable Spear

Show video

Application

TLVPM releasable spear is used to retrieve tubing during remediation in a wellbore.

Design

TLVPM releasable spear consists of a body, slip, slip cage, head, sub, bushing, bushing key, threaded bushing, cover, friction bushing, screws.
The body of the spear is made in the form of a sleeve; its lower end is connected to the head.
The body has inclined dovetailed slots, where the slips with mating slide travel.
There is stop notch on the slips. The slips are carburized at depth down to 0.8-1.0mm and quenched (58-60 HRC).
The releasable spear is avalable in right- and left-hand configuration.

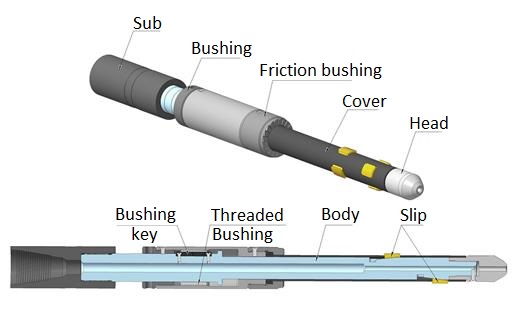

Images and Dimensions

Technical data

To cart	Code	ID of caught pipes, in	Total length, ft	Connection, API	Max D of releasing unit, in	Number of slips	Load capacity, lbf	Weight, lb
	TLVPM-60	1-5/16 - 2-1/16	3.77	NC 26	3-5/8	3	44 960	44.09
	TLVPM-73	2-5/16 - 2-9/16	3.58	2-7/8 Reg	3-5/8	6	67 440	78.04
	TLVPM-89	2-4/5 - 3-1/8	3.58	2-7/8 Reg	4-1/4	6	112 400	85.98
	TLVPM-102	3-3/8 - 3-5/8	3.77	2-3/8 Reg	4-3/4	6	157 400	110.2
	TLVPM-114	3-1/2 - 4-1/4	3.77	NC 26	4-3/4	6	179 800	136.7
	TLVPM-127	4,0 - 4-9/16	4.27	NC 26	5-1/2	6	179 800	220.5
	TLVPM-140	4-7/16 - 5-1/16	4.92	3-1/2 Reg	6-5/16	6	179 800	330.7
	TLVPM-146	4-3/4 - 5-7/16	4.92	3-1/2 Reg	6-5/16	6	269 800	440.9
	TLVPM-168	5-11/16 - 6-1/4	6.5	3-1/2 IF	5-1/2	6	269 800	551.2

You can specify the size of an item on the checkout page.

Add to cart
