TVP Nonreleasable Spear

Show video

Application

TVP unreleasable spear is designed to retrieve tubing during remediation in a well.

Design

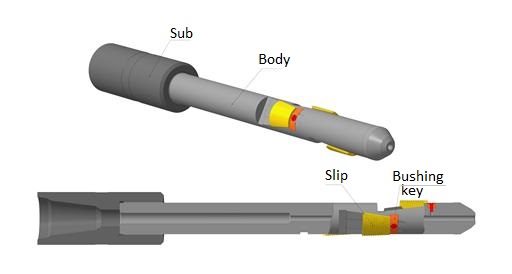

TVP spear consists of the following parts: sub, body, slip, bushing key and screw. The sub has box thread to connect to the fishing string at the upper end and special thread to connect to the spear body at the lower end. The spear body is made in the form of a sleeve.It has inclined dovetail slots, in which the slips with matching dovetail male travel. The slips are carburized at depth down to 0.8-1.0mm and quenched (58-63HRC).

Images and Dimensions

Technical data

To cart	Code	ID of caught pipes, in	Total length, ft	Connection, API	Number of slips	Load capacity, lbf	Weight, lb
	TVP-60	1-15/16 - 2-3/16	2.63	2-7/8 Reg	3	67 440	36.16
	TVP-73	2-5/16 - 2-9/16	2.63	2-7/8 Reg	3	89 920	42.33
	TVP-89	2-4/5 - 3-1/8	2.82	2-7/8 Reg	3	112 400	56.44
	TVP-102	3-1/4	3.15	2-7/8 Reg	3	134 900	80.25
	TVP-114	3-3/4 - 4-5/16	3.22	2-7/8 Reg	6	224 800	99.21
	TVP-140	4-1/2 - 5-1/2	3.28	3-1/2 Reg	6	494 600	158.7
	TVP-146	4-7/8 - 5-3/4	3.28	3-1/2 Reg	6	494 600	172.0
	TVP-168	5-3/8 - 6-1/4	3.28	3-1/2 Reg	6	584 500	183.0

You can specify the size of an item on the checkout page.
