FTU-T Junk Mill With Carbide Inserts

Show video

Application

FTU-T junk mill with carbide inserts is designed to destroy metal objects, cement and cemented metal objects all across wellbore cross-section.

Design

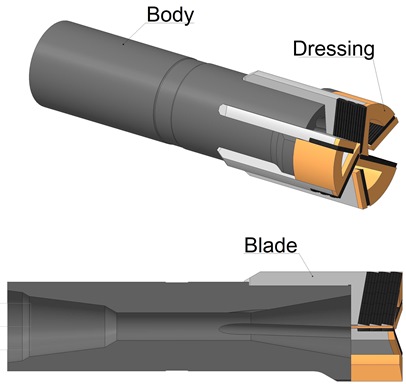

FTU-T junk mill with carbide inserts consists of a body made of high-strength alloy steel and cutting-crushing braze of crushed tungsten carbide in matrix of nickel/brass and carbide inserts.
It has thread connection at the upper end and circulation ports and relevant watercourses for better cooling and efficient removal of cuttings at the lower face and flank.
The junk mill is available in right- and left-hand configuration.

Images and Dimensions

Technical data

To cart	Code	Washing channel diameter, in	OD, in	Length, ft	Compatible API connection	Thickness of dressing, in
	X-56	0.39	2.2	0.46	З-33	0.59
	X-80	0.47	3.17	0.52	2-3/8 Reg	0.79
	X-90	0.47	3.54	1.31	2-3/8 Reg	0.79
	X-102	0.47	4.02	1.31	2-3/8 Reg	0.79
	X-112	0.63	4.41	1.31	2-7/8 Reg	0.79
	X-114	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-117	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-118	0.63	4.65	1.31	2-7/8 Reg	0.79
	X-120	0.63	4.72	1.31	2-7/8 Reg	0.79
	X-121	0.63	4.75	1.31	2-7/8 Reg	0.79
	X-122	0.63	4.81	1.31	2-7/8 Reg	0.79
	X-124	0.63	4.87	1.31	2-7/8 Reg	0.79
	X-127	0.63	5.0	1.31	2-7/8 Reg	0.79
	X-130	0.63	5.13	1.31	2-7/8 Reg	0.79
	X-133	0.63	5.25	1.31	2-7/8 Reg	0.79
	X-136	0.63	5.37	1.31	3-1/2 Reg	0.79
	X-140	0.79	5.5	1.31	3-1/2 Reg	0.79
	X-143	0.79	5.63	1.31	3-1/2 Reg	0.79
	X-146	0.79	5.75	1.31	3-1/2 Reg	0.79
	X-149	0.79	5.87	1.31	3-1/2 Reg	0.79
	X-152	0.79	6.0	1.31	3-1/2 Reg	0.79
	X-156	0.79	6.13	1.31	3-1/2 Reg	0.79
	X-159	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-162	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-165	0.79	6.5	1.31	3-1/2 Reg	0.79
	X-168	1.42	6.63	1.31	4-1/2 FH	0.79
	X-171	1.42	6.75	1.31	4-1/2 FH	0.79
	X-175	1.42	6.75	1.31	4-1/2 FH	0.79
	X-178	1.42	7.0	1.31	4-1/2 FH	0.79
	X-181	1.42	7.13	1.31	4-1/2 FH	0.79
	X-184	1.42	7.25	1.31	4-1/2 FH	0.79
	X-187	1.42	7.37	1.31	4-1/2 FH	0.79
	X-191	1.42	7.5	1.31	4-1/2 FH	0.79
	X-194	1.42	7.63	1.31	4-1/2 FH	0.79
	X-197	1.42	7.75	1.31	4-1/2 FH	0.79
	X-200	1.42	7.87	1.31	4-1/2 FH	0.79
	X-210	1.42	8.25	1.31	4-1/2 FH	0.79
	X-213	1.57	8.37	1.48	5-1/2 FH	0.98
	X-216	1.57	8.37	1.48	5-1/2 FH	0.98
	X-219	1.57	8.63	1.48	5-1/2 FH	0.98
	X-222	1.57	8.75	1.48	5-1/2 FH	0.98
	X-225	1.57	8.87	1.48	5-1/2 FH	0.98
	X-229	1.57	9.0	1.48	5-1/2 FH	0.98
	X-232	1.57	9.13	1.48	5-1/2 FH	0.98
	X-235	1.57	9.25	1.48	5-1/2 FH	0.98
	X-238	1.57	9.37	1.48	5-1/2 FH	0.98
	X-241	1.57	9.5	1.48	5-1/2 FH	0.98
	X-245	1.57	9.63	1.48	5-1/2 FH	0.98
	X-248	1.57	9.75	1.48	5-1/2 FH	0.98
	X-251	1.57	9.87	1.48	5-1/2 FH	0.98
	X-254	1.57	10.13	1.48	5-1/2 FH	0.98
	X-257	1.57	10.13	1.48	5-1/2 FH	0.98
	X-260	1.57	10.25	1.48	5-1/2 FH	0.98
	X-264	1.57	10.37	1.48	5-1/2 FH	0.98
	X-267	1.57	10.5	1.48	5-1/2 FH	0.98
	X-270	1.57	10.63	1.48	5-1/2 FH	0.98

You can specify the size of an item on the checkout page.
