FT Junk mill

Show video

Application

FT junk mill has a flat bottom with cutting-crushing braze of tungsten carbide and is used to destroy metal objects during intervention operations in a wellbore.

Design

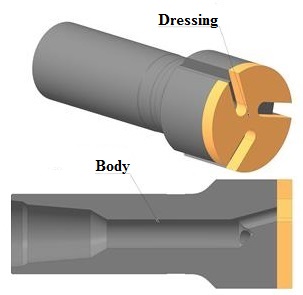

The junk mill consists of a body and cutting-crushing braze. It has thread connection at the upper part and circulation ports and relevant watercourses for better cooling and more efficient cuttings removal at the lower part. The lateral surface of the tungsten carbide braze is ground flush with body OD.

Images and Dimensions

Technical data

To cart	Code	Washing channel diameter, in	OD, in	Length, ft	Compatible API connection	Thickness of dressing, in
	X-56	0.39	2.2	0.46	З-33	0.59
	X-80	0.47	3.17	0.52	2-3/8 Reg	0.79
	X-90	0.47	3.54	1.31	2-3/8 Reg	0.79
	X-102	0.47	4.02	1.31	2-3/8 Reg	0.79
	X-112	0.63	4.41	1.31	2-7/8 Reg	0.79
	X-114	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-117	0.63	4.5	1.31	2-7/8 Reg	0.79
	X-118	0.63	4.65	1.31	2-7/8 Reg	0.79
	X-120	0.63	4.72	1.31	2-7/8 Reg	0.79
	X-121	0.63	4.75	1.31	2-7/8 Reg	0.79
	X-122	0.63	4.81	1.31	2-7/8 Reg	0.79
	X-124	0.63	4.87	1.31	2-7/8 Reg	0.79
	X-127	0.63	5.0	1.31	2-7/8 Reg	0.79
	X-130	0.63	5.13	1.31	2-7/8 Reg	0.79
	X-133	0.63	5.25	1.31	2-7/8 Reg	0.79
	X-136	0.63	5.37	1.31	3-1/2 Reg	0.79
	X-140	0.79	5.5	1.31	3-1/2 Reg	0.79
	X-143	0.79	5.63	1.31	3-1/2 Reg	0.79
	X-146	0.79	5.75	1.31	3-1/2 Reg	0.79
	X-149	0.79	5.87	1.31	3-1/2 Reg	0.79
	X-152	0.79	6.0	1.31	3-1/2 Reg	0.79
	X-156	0.79	6.13	1.31	3-1/2 Reg	0.79
	X-159	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-162	0.79	6.25	1.31	3-1/2 Reg	0.79
	X-165	0.79	6.5	1.31	3-1/2 Reg	0.79
	X-168	1.42	6.63	1.31	4-1/2 FH	0.79
	X-171	1.42	6.75	1.31	4-1/2 FH	0.79
	X-175	1.42	6.75	1.31	4-1/2 FH	0.79
	X-178	1.42	7.0	1.31	4-1/2 FH	0.79
	X-181	1.42	7.13	1.31	4-1/2 FH	0.79
	X-184	1.42	7.25	1.31	4-1/2 FH	0.79
	X-187	1.42	7.37	1.31	4-1/2 FH	0.79
	X-191	1.42	7.5	1.31	4-1/2 FH	0.79
	X-194	1.42	7.63	1.31	4-1/2 FH	0.79
	X-197	1.42	7.75	1.31	4-1/2 FH	0.79
	X-200	1.42	7.87	1.31	4-1/2 FH	0.79
	X-210	1.42	8.25	1.31	4-1/2 FH	0.79
	X-213	1.57	8.37	1.48	5-1/2 FH	0.98
	X-216	1.57	8.37	1.48	5-1/2 FH	0.98
	X-219	1.57	8.63	1.48	5-1/2 FH	0.98
	X-222	1.57	8.75	1.48	5-1/2 FH	0.98
	X-225	1.57	8.87	1.48	5-1/2 FH	0.98
	X-229	1.57	9.0	1.48	5-1/2 FH	0.98
	X-232	1.57	9.13	1.48	5-1/2 FH	0.98
	X-235	1.57	9.25	1.48	5-1/2 FH	0.98
	X-238	1.57	9.37	1.48	5-1/2 FH	0.98
	X-241	1.57	9.5	1.48	5-1/2 FH	0.98
	X-245	1.57	9.63	1.48	5-1/2 FH	0.98
	X-248	1.57	9.75	1.48	5-1/2 FH	0.98
	X-251	1.57	9.87	1.48	5-1/2 FH	0.98
	X-254	1.57	10.13	1.48	5-1/2 FH	0.98
	X-257	1.57	10.13	1.48	5-1/2 FH	0.98
	X-260	1.57	10.25	1.48	5-1/2 FH	0.98
	X-264	1.57	10.37	1.48	5-1/2 FH	0.98
	X-267	1.57	10.5	1.48	5-1/2 FH	0.98
	X-270	1.57	10.63	1.48	5-1/2 FH	0.98

You can specify the size of an item on the checkout page.
