FSO-T Window-starting Mill With Combined Reinforcement

Show video

Application

FSO-T window-starting mill with combined reinforcement is used to run in and set whipstock on the bottom and to mill window in a cased hole, all in a single trip.

It can be used:

To run in and set up whipstock;
Separately with circulation through ports;
In conjunction with one (two) watermelon mills and circulation through ports.

Design

Having helix angle, FSO-T window-starting mill dressed with crushed tungsten carbide and carbide inserts.
The mill is used in extreme environment (double casing, high-grade steel casing (i.e. R-110) and for heavy-wall casing.

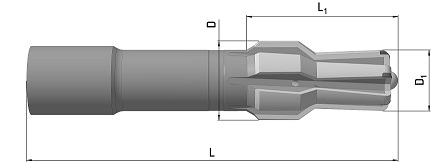

Images and Dimensions

Technical data

To cart	Code	Casing OD, in	Total length, ft	L1, ft	D, in	D1, in	Top connection, compatible with API	Weight, lb
	FSO-92T	4-1/2	21-5/8	9-3/8	4-9/16	3-3/4	NC 23	12,0
	FSO-115T	5-1/2	21-7/16	9-3/8	4-9/16	3-11/16	2-7/8 Reg (NC 26)	21,0
	FSO-124T	5-3/4	22-13/16	8-11/16	4-7/8	3-7/8	2-7/8 Reg (NC 26)	25,0
	FSO-144T	6-5/8	23-5/8	9-7/8	5-11/16	4-7/16	3-1/2 Reg(NC31)	35,0
	FS0-155T	7,0	23-5/8	9-7/8	6-1/8	4-7/16	2-7/8 IF	39,0
	FSO-216T	9-5/8	26-3/4	14-9/16	8-1/2	6-7/16	4-1/2 IF	90,0

You can specify the size of an item on the checkout page.
